ELECTRICAL ENGINEERING / DESIGN SAMPLES
Synchronization panel
Generator and BESS power distribution, synchronizing controls, metering and panel construction.
3D · PDF page 48

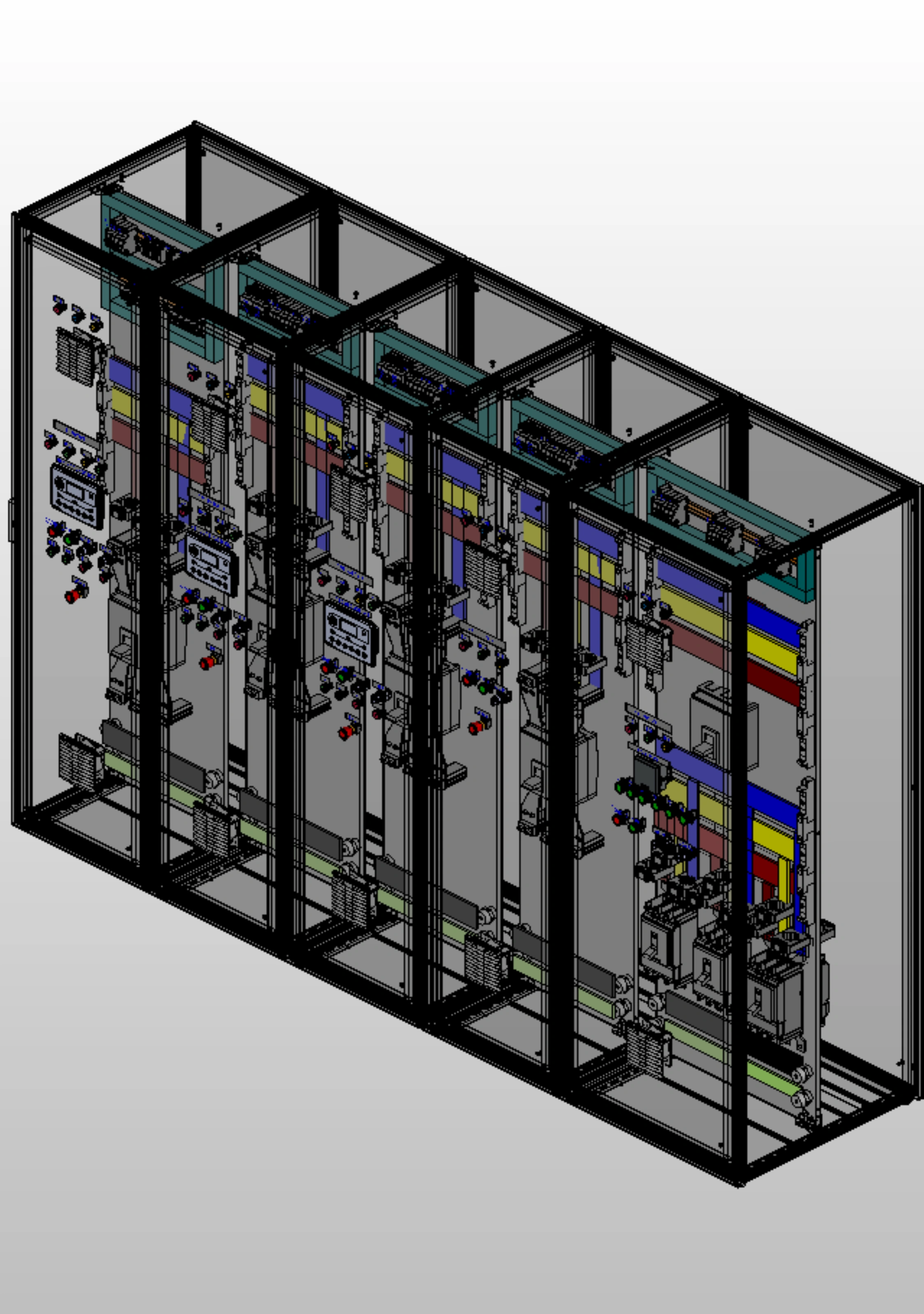

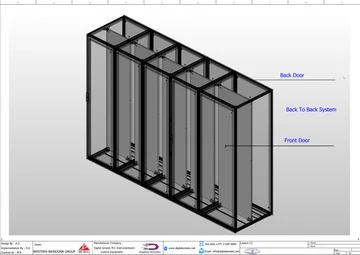

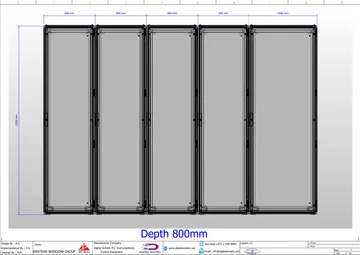

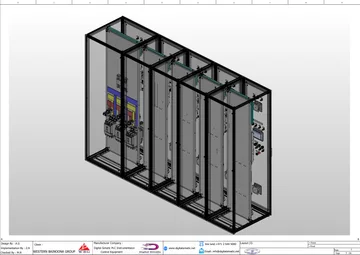

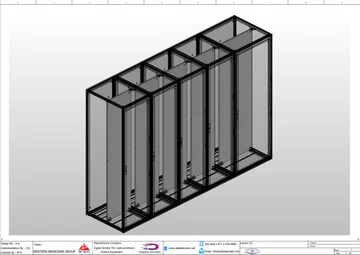

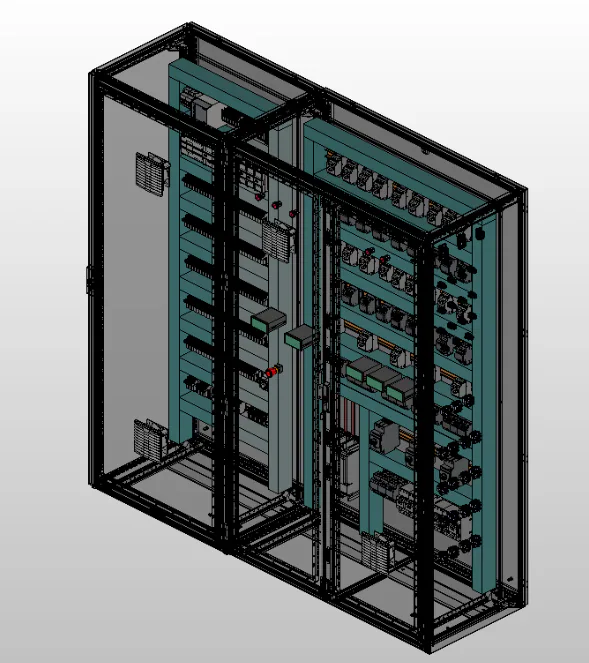

Populated panel — isometric
1 / 33
ELECTRICAL DESIGN & PANEL DELIVERY
DESIGNby Digital Simatic
A complete engineering product from concept to a tested, build-ready control panel.
Explore the system
01 / ENGINEERING
From drawing to panel.
Our repeatable design-and-delivery product covers electrical schematics, EPLAN 2D/3D engineering, material schedules, customized panel manufacturing, testing and site execution.
3D Panel Lineup
Component-level multi-section design.
View full resolution ↗- Single-line, power and control schematics
- I/O, cable, terminal and material lists
- 3D enclosure layout and routing
- Customized assembly, wiring, FAT and as-built package
02 / PROJECT GALLERY
From engineering
to the field.
33selected sheets
ELECTRICAL ENGINEERING / DESIGN SAMPLES
Concrete batching plant
Control-panel engineering for batching, material handling, mixer drives, PLC inputs and outputs, and field wiring.
3D · PDF page 145

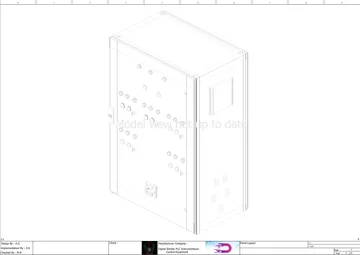

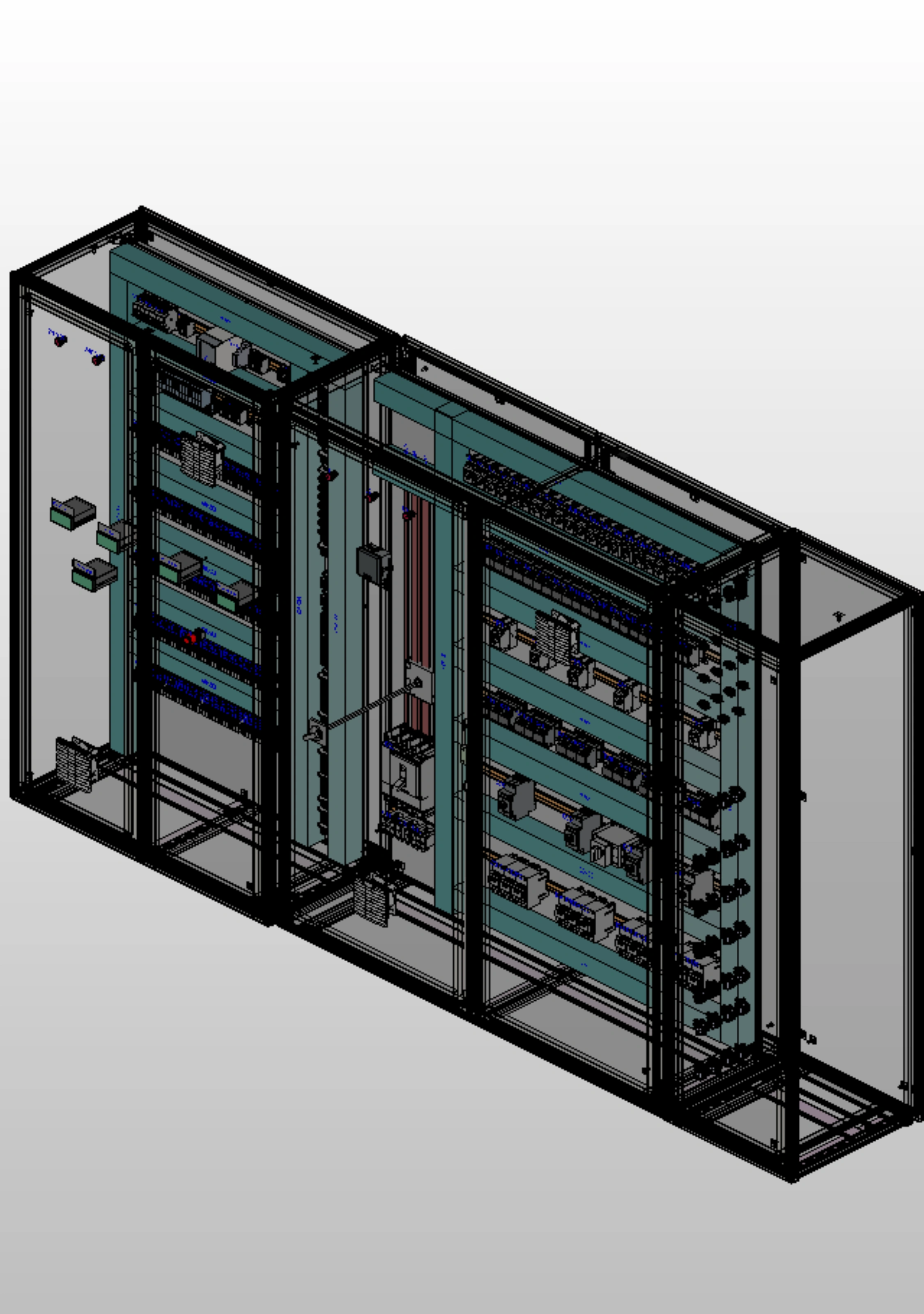

Complete control panel — view 1
1 / 51
